16mm series Push Switch

  • 16mm Metal  Button Switch with Power Sign
  • 16mm Metal  Button Switch with Power Sign
  • 16mm Metal  Button Switch with Power Sign
  • 16mm Metal  Button Switch with Power Sign
  • 16mm Metal  Button Switch with Power Sign
16mm Metal  Button Switch with Power Sign16mm Metal  Button Switch with Power Sign16mm Metal  Button Switch with Power Sign16mm Metal  Button Switch with Power Sign16mm Metal  Button Switch with Power Sign

16mm Metal Button Switch with Power Sign

  • Metal Button Switch
  • Metal Button
  • Waterproof Button Switch
  • Power button switch
  • Product description: 16mm Hyperplane high round actuator waterproof metal push button switch 1NO1NC SPST contact
  • INQUIRY

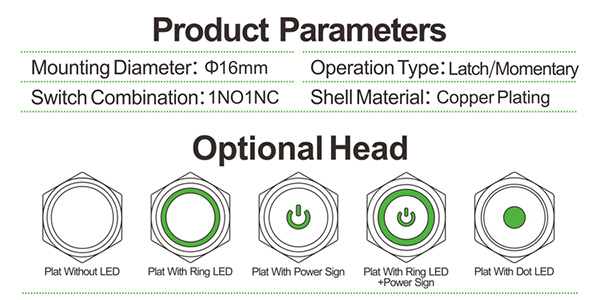

Descriptions:

Model Number:16 Metal Push Button Switch

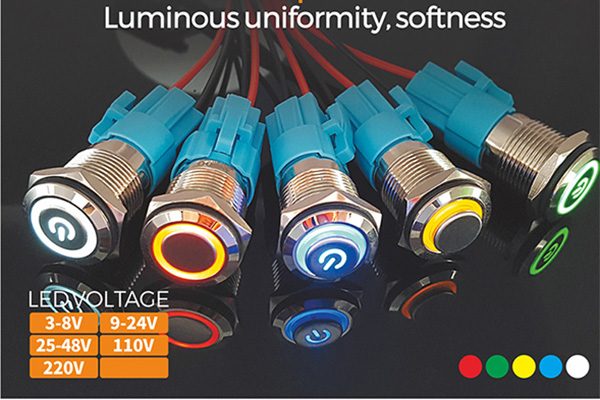

LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v

Mounting hole diameter:16mm

Head shape:Flat head/ High head

Crust material:Stainless Steel/Copper plating/Aluminum oxide

Contact configuration:1NO1NC- Normal Open/Normal Close

Operation type:Momentary or Latching

Emitting Type:Ring LED/Symbol LED/Dot LED

Switch Rating:3A / 250VAC

Features:

1.3A metal push button switch

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC function

8.Customzied: Acceptable

9.16MM SPST ON OFF IP67 IK10 momentary stainless steel push button
