19mm series Push Switch

  • 19mm Metal Push Ring Switch
  • 19mm Metal Push Ring Switch
  • 19mm Metal Push Ring Switch
  • 19mm Metal Push Ring Switch
  • 19mm Metal Push Ring Switch
19mm Metal Push Ring Switch19mm Metal Push Ring Switch19mm Metal Push Ring Switch19mm Metal Push Ring Switch19mm Metal Push Ring Switch

19mm Metal Push Ring Switch

  • Metal Button Switch
  • Metal Button
  • Waterproof Button Switch
  • Ring Sign button switch
  • Product description: test product from Yikia that is a Metal button switch,push switch,smart switch ,LED switch,power switch,Auto button,Auto switches manufacturer and exporter in China!
  • INQUIRY

Descriptions:

Model Number:19mm Metal Push Button Switch

LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v

Mounting hole diameter:19mm

Head shape:Flat head/ High head

Crust material:Stainless Steel/Copper plating/Aluminum oxide

Contact configuration:1NO1NC/ 2NO2NC

Operation type:Momentary or Latching

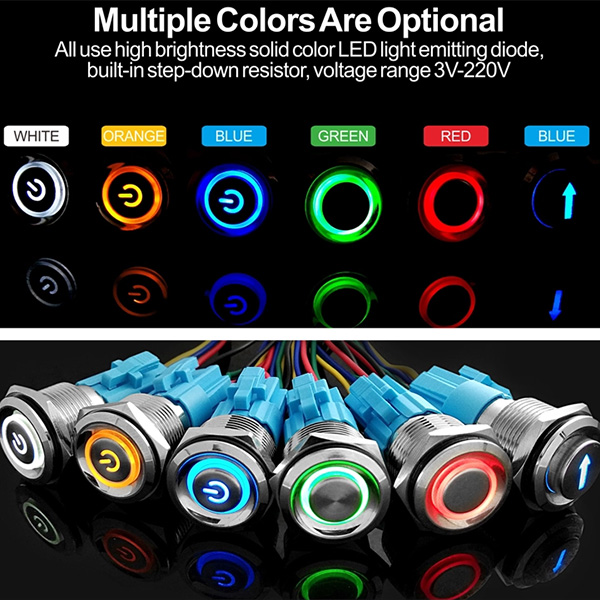

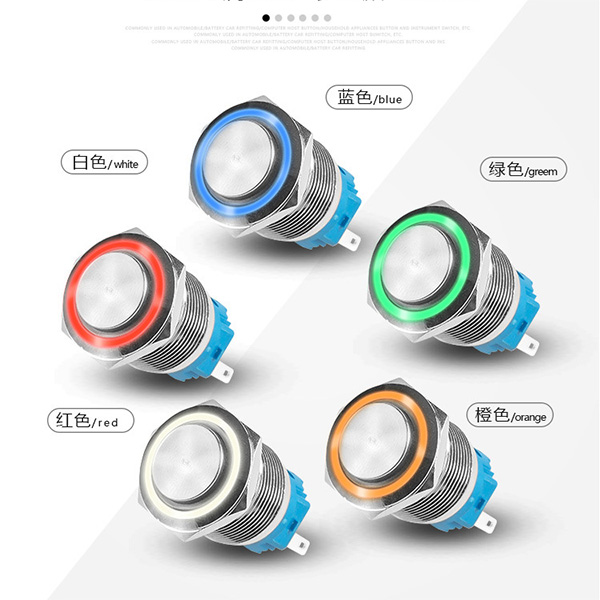

Emitting Type:Ring LED/Symbol LED/Dot LED

Switch Rating:3A / 250VAC

Features:

1.3A metal push button switch

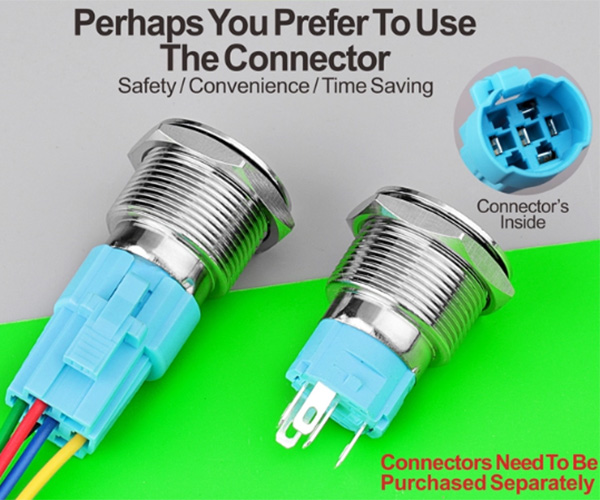

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC/2NO2NC function

8.Customzied: Acceptable

9.19MM SPST ON OFF IP67 IK8 momentary stainless steel push button
