22mm series Push Switch

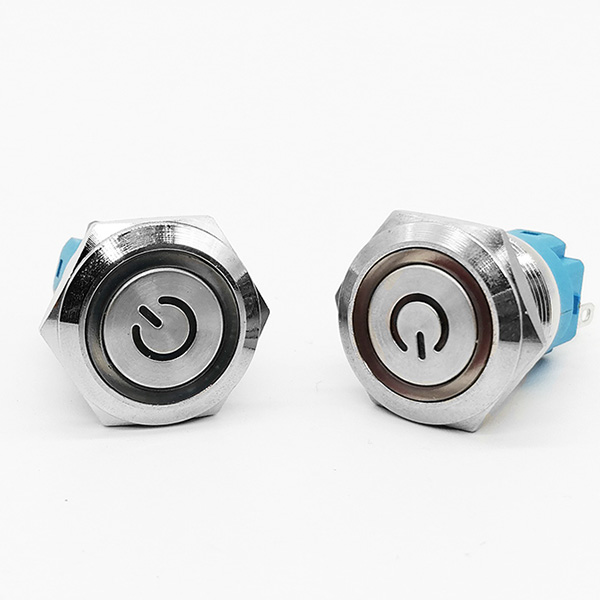

22mm Metal Push Power Sign Switch
- Metal Button Switch
- Metal Button
- Waterproof Button Switch
- Power Sign button switch
- Product description: Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic conv
Descriptions:
Model Number:22mm Metal Push Button Switch
LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v
Mounting hole diameter:19mm

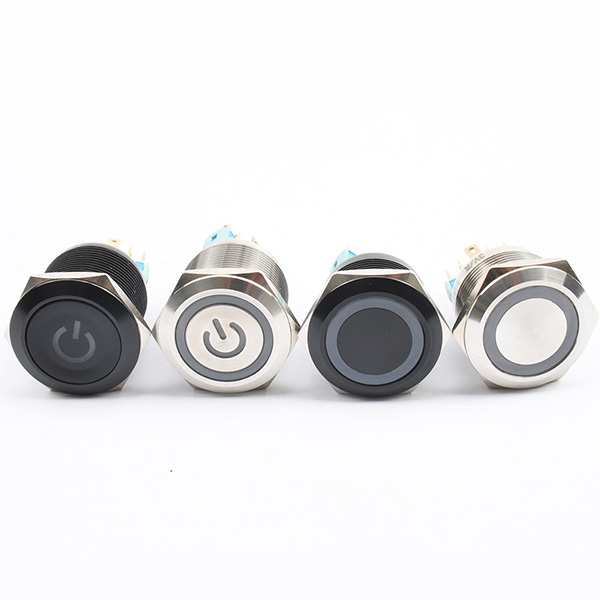

Head shape:Flat head/ High head
Crust material:Stainless Steel/Copper plating/Aluminum oxide

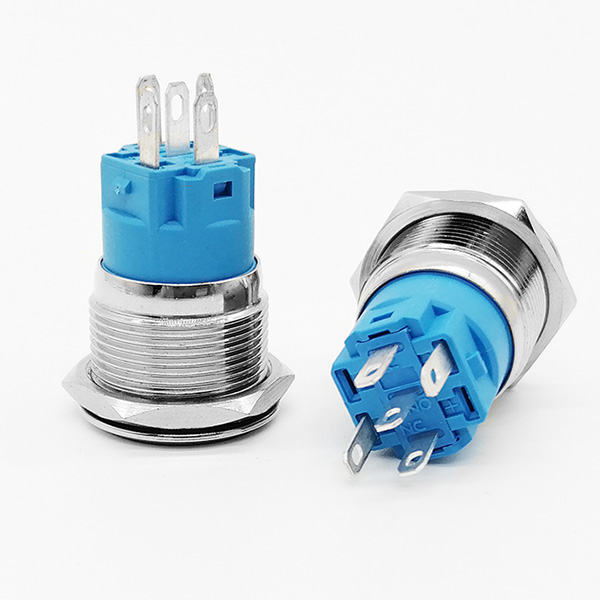

Contact configuration:1NO1NC/ 2NO2NC
Operation type:Momentary or Latching

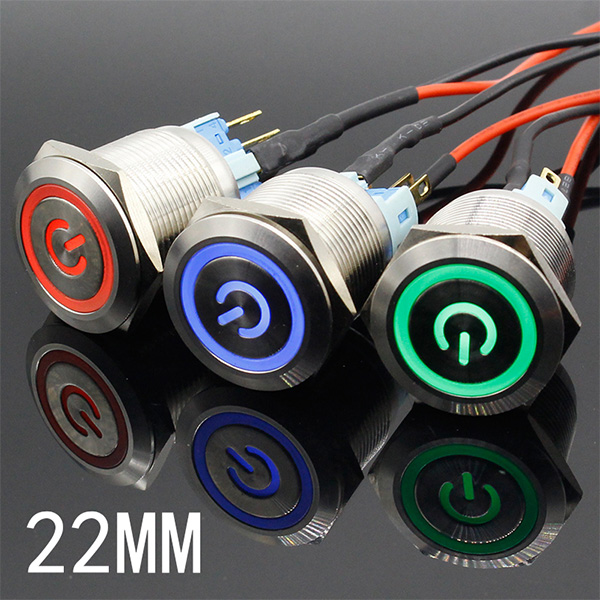

Emitting Type:Ring LED/Symbol LED/Dot LED
Switch Rating:3A / 250VAC
Features:
1.3A metal push button switch

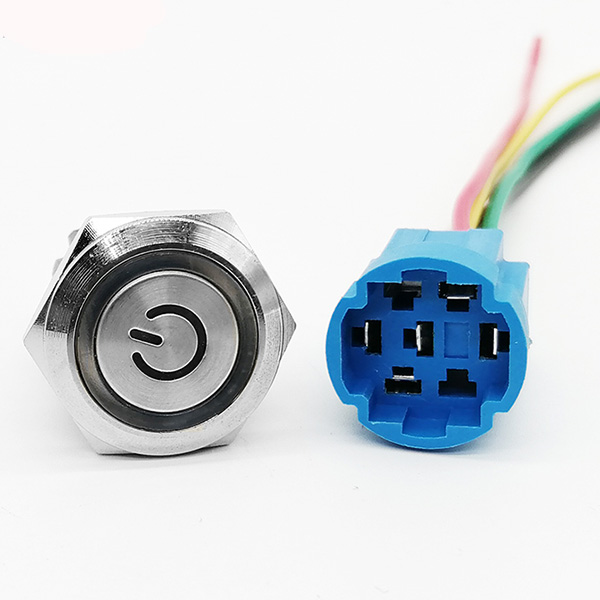

2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With concave design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP67;
6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7.1NO1NC/2NO2NC function
8.Customzied: Acceptable
9.22MM SPST ON OFF IP67 IK8 momentary stainless steel push button
