22mm series Push Switch

22mm Metal Push Button Switches

Metal Button Switch
Metal Button
Waterproof Button Switch
button switches

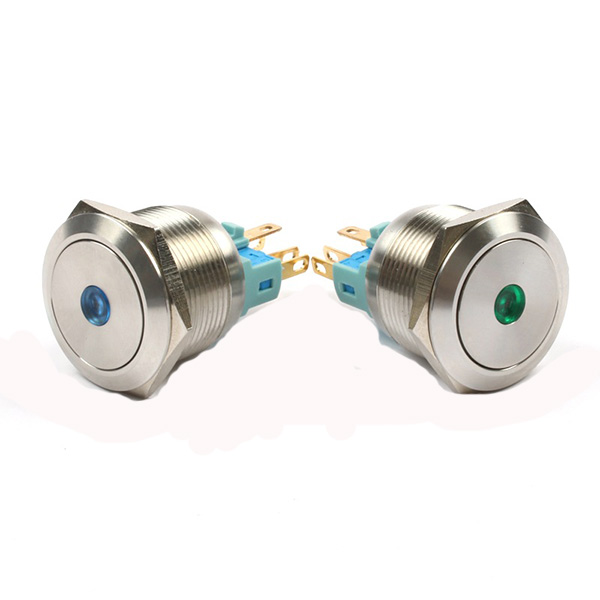

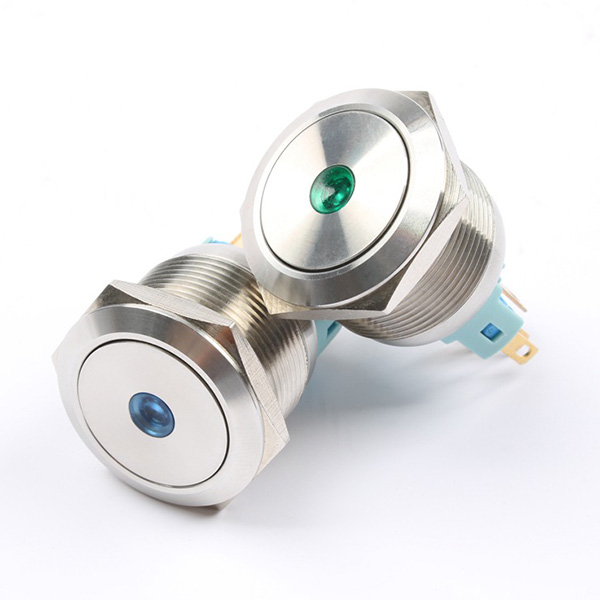

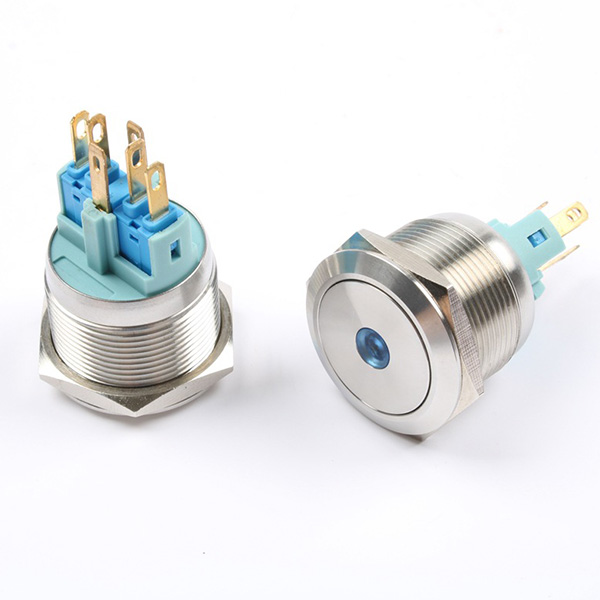

Product description: 22mm Dot With light Metal Push button actuator waterproof metal push button switch 1NO1NC SPST contact
INQUIRY

Descriptions:

Model Number:22mm Metal Push Button Switch

LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v

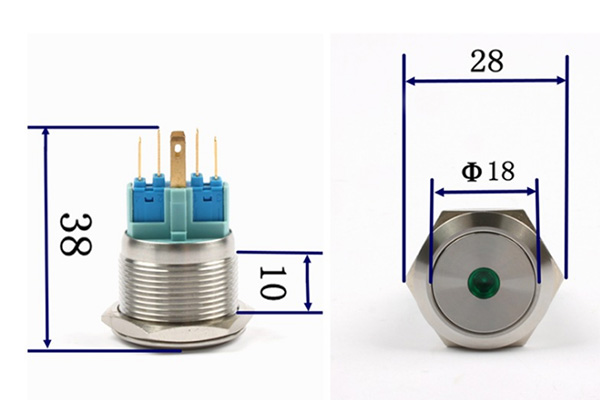

Mounting hole diameter:16mm

Head shape:Flat head/ High head

Crust material:Stainless Steel/Copper plating/Aluminum oxide

Contact configuration:1NO1NC/2NO2NC

Operation type:Momentary or Latching

Emitting Type:Ring LED/Symbol LED/Dot LED

Switch Rating:3A / 250VAC

Features:

1.3A metal push button switch

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC function

8.Customzied: Acceptable

9.16MM SPST ON OFF IP66 IK10 momentary stainless steel push button
