Home   |   3PDT FOOT Guitar Switch

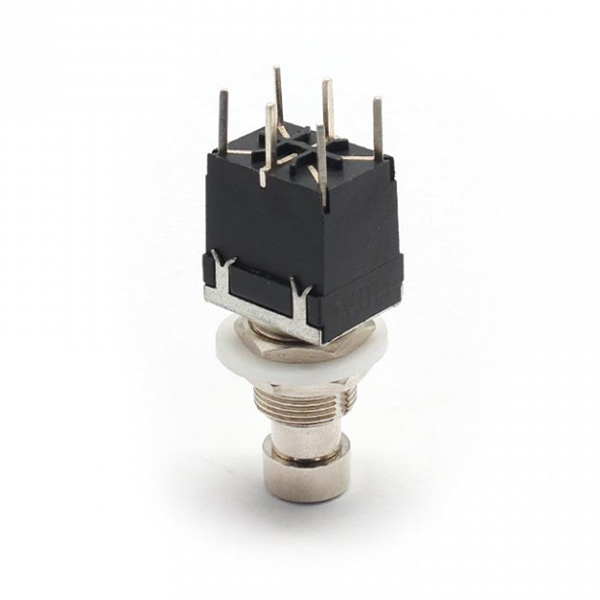

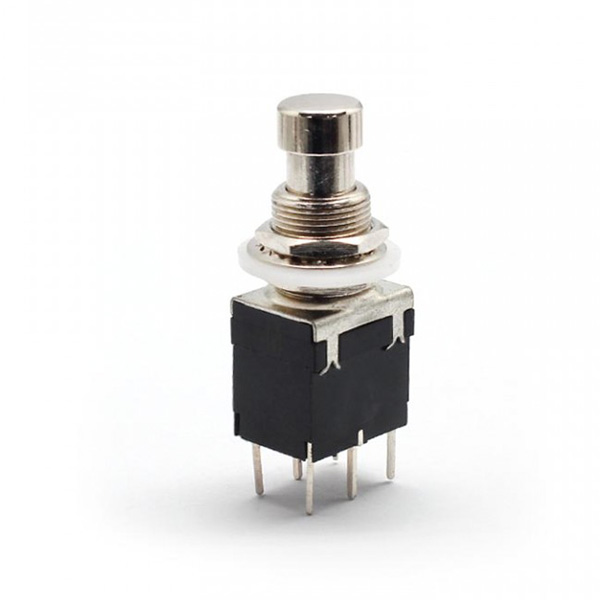

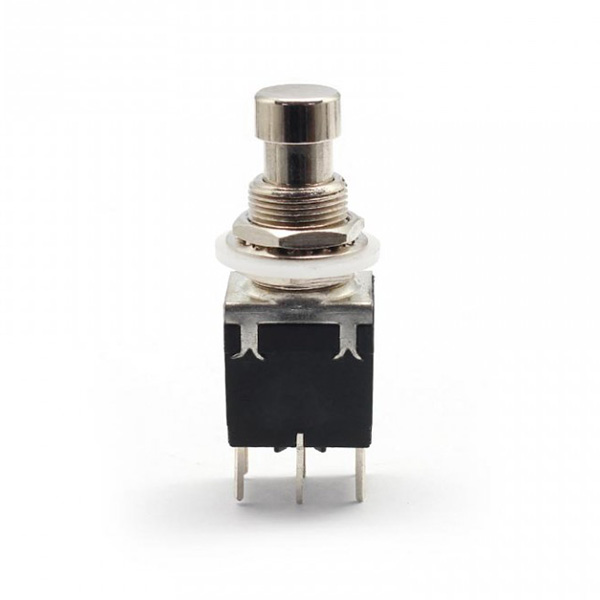

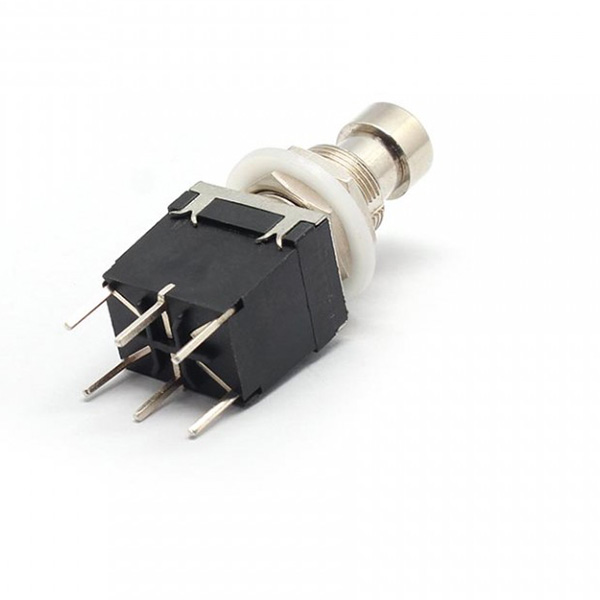

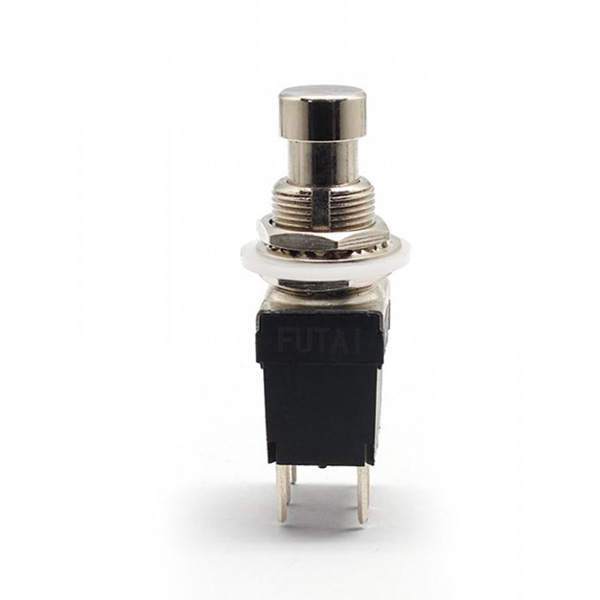

3PDT FOOT Guitar Switch

  • 6Pins PCB Terminnal Guitar Switch
  • 6Pins PCB Terminnal Guitar Switch
  • 6Pins PCB Terminnal Guitar Switch
  • 6Pins PCB Terminnal Guitar Switch
6Pins PCB Terminnal Guitar Switch6Pins PCB Terminnal Guitar Switch6Pins PCB Terminnal Guitar Switch6Pins PCB Terminnal Guitar Switch

6Pins PCB Terminnal Guitar Switch

  • 6Pins PCB Terminnal Guitar Switch
  • PCB Terminnal Guitar Switch
  • Momentary Guitar Switch
  • Product description: The six-leg guitar switch is self-resetting and is an accessory to the electric guitar switch used in sound effects.
  • INQUIRY
  • Mode: FLST06JYZM
  • Voltage:30V 125V 250V
  • Current:AC 4A / DC 4A / AC 2A
  • Contact resistance:≤5mΩ
  • Insulation resistance:≥100MΩ, 500V DC
  • Withstand voltage:1000V AC / min
  • Action force:2.5 ± 0.8Kgf
  • Life:≥10000cycles


The six-leg guitar switch is self-resetting and is an accessory to the electric guitar switch used in sound effects.
The 3PDT SWITCH is made of heat-resistant nylon,
The FOOT SWITCH has an installation aperture of 12MM
The current on the Guitar switch is 1A with a voltage of 12V
Pedal switch is linked by circuit board welding,
Welding mode and attention of guitar switch.Welding temperature ≤206℃±5°(wave soldering), within 3 seconds;
Manual solder :≤300℃±5°, within 3 seconds
