3PDT FOOT Guitar Switch

6pin 2PDT Small Foot Guitar Switches

6Pin OFF-ON Switch
SPST Foot Switch
Foot Pedal PUSH BUTTON SWITCH
Product description: The 6-leg guitar switch is a self-locking and self-replicating style, an accessory to the electric guitar switch used in sound effects.
INQUIRY

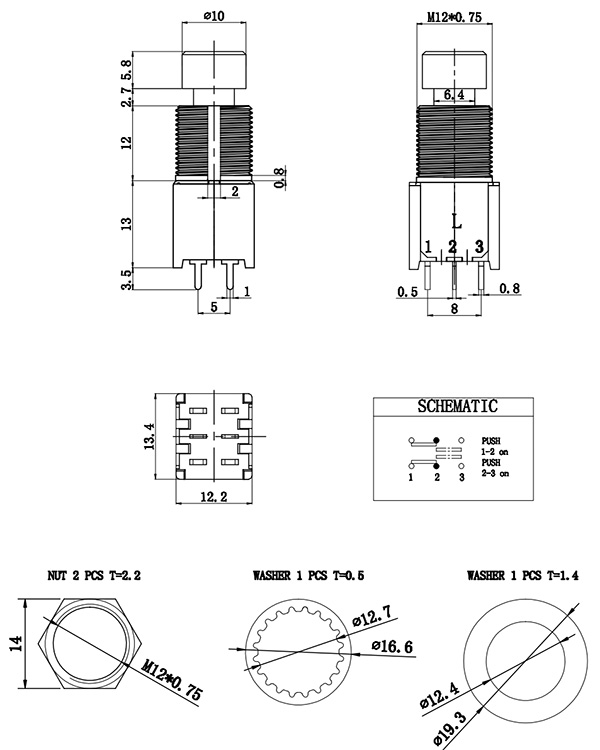

Mode: FLST06JXZM

Voltage:30V 125V 250V

Current:AC 4A / DC 4A / AC 2A

Contact resistance:≤5mΩ

Insulation resistance:≥100MΩ, 500V DC

Withstand voltage:1000V AC / min

Action force:2.5 ± 0.8Kgf

Life:≥10000cycles

The 6-leg guitar switch is a self-locking and self-replicating style, an accessory to the electric guitar switch used in sound effects.
The 3PDT SWITCH is made of heat-resistant nylon,
The FOOT SWITCH has an installation aperture of 12MM
The current on the Guitar switch is 1A with a voltage of 12V
Pedal switch is linked by circuit board welding,
Welding mode and attention of guitar switch.Welding temperature ≤206℃±5°(wave soldering), within 3 seconds;
Manual solder :≤300℃±5°, within 3 seconds
