Rocker Switch
8 pin rocker switch Illuminated
- Rocker switch
- On off Switch
- 8 pin rocker switch Illuminated
- 3 pole Rocker switch

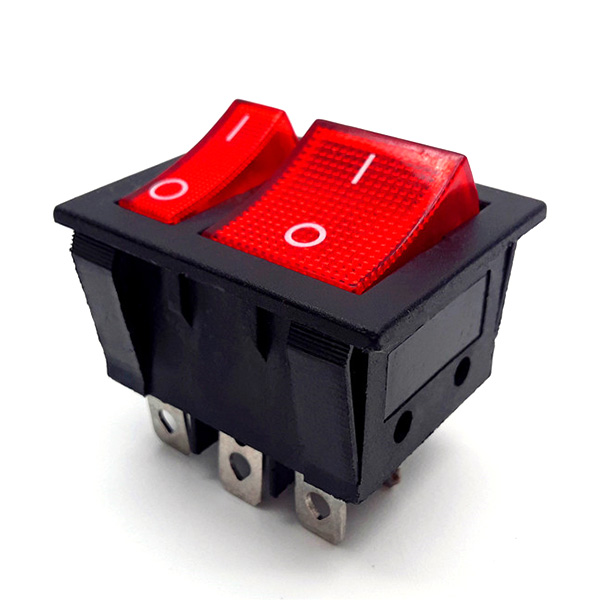

- Product description: 8 pin rocker switch Illuminated TUV 20A DPST On Off 3 pole white rocker Switch
| tems | Rocker switch |
| Housing material | PA66 |
| Button material | PC |
| Contacts material | Copper with compound silver |
| Rating | 3A 6A 10A 15A 250VAC |
| Temperature | -40℃ to 125℃ |
| Dielectric Strength | 1500Vrms min |
| Contact Resistance | <30MΩ |
| Insulation Resistance | >100MΩ |
| Flammability | UL94V0 |
| Eletrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Applications |
motorcycle,overload protection |
