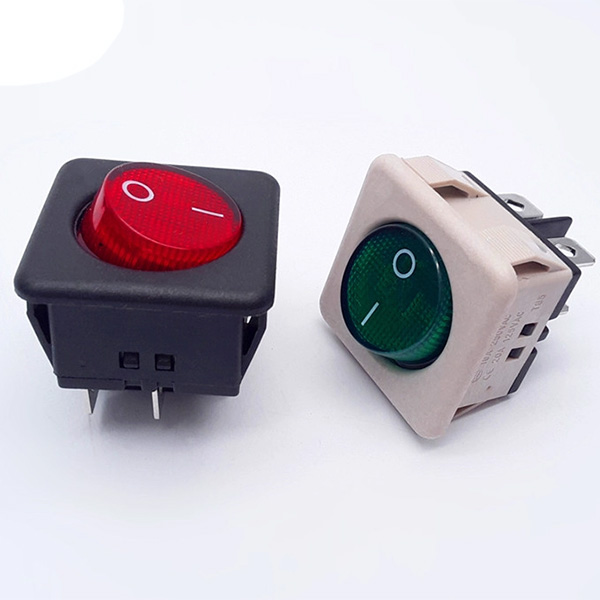

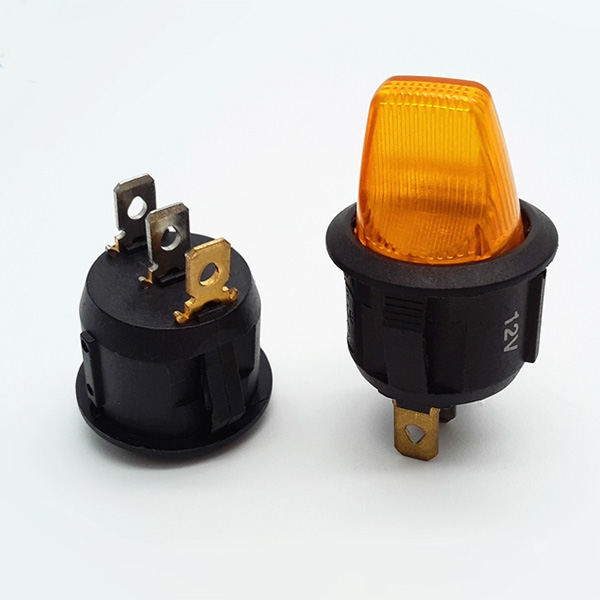

Rocker Switch
Rocker switch T125 55
- Rocker switch

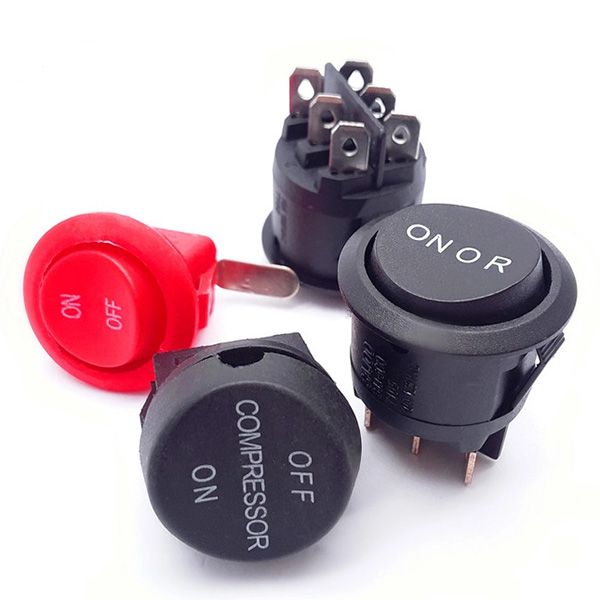

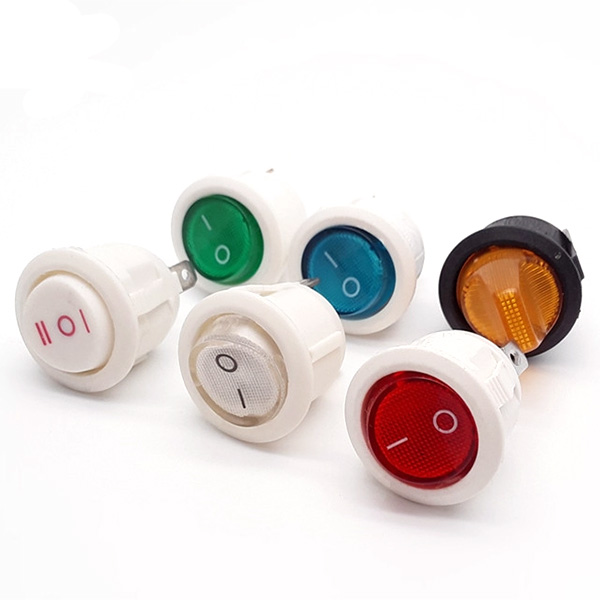

- Round Rocker Switch
- LED Roacker switch
- Waterproof
- Product description: Rocker switch t125 55 ,12 volt 24 volt waterproof illuminated
| tems | Rocker switch |
| Housing material | PA66 |
| Button material | PC |
| Contacts material | Copper with compound silver |
| Rating | 3A 6A 10A 15A 250VAC |
| Temperature | -40℃ to 125℃ |
| Dielectric Strength | 1500Vrms min |
| Contact Resistance | <30MΩ |
| Insulation Resistance | >100MΩ |
| Flammability | UL94V0 |
| Eletrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Applications |
Low-voltage electrical appliances, toys, water dispensers, etc. |
