25mm series Push Switch

  • 25mm illuminated Ring Button Switches
  • 25mm illuminated Ring Button Switches
  • 25mm illuminated Ring Button Switches
25mm illuminated Ring Button Switches 25mm illuminated Ring Button Switches 25mm illuminated Ring Button Switches

25mm illuminated Ring Button Switches

  • Metal Button Switch
  • illuminated Switch
  • Waterproof Button Switch
  • momentary push button switch

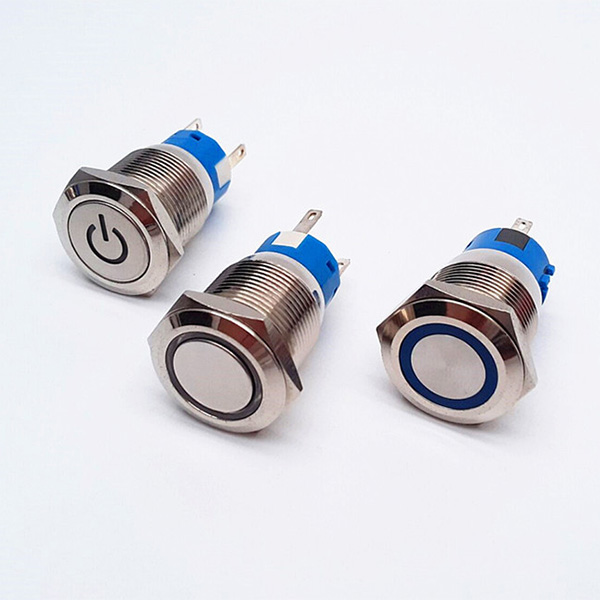

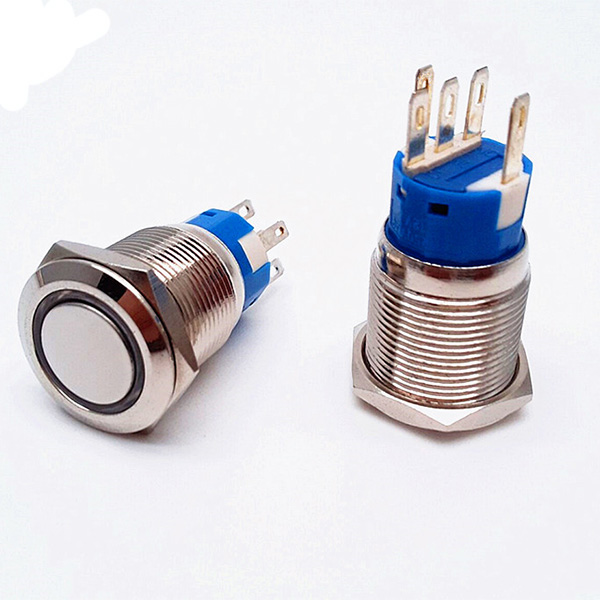

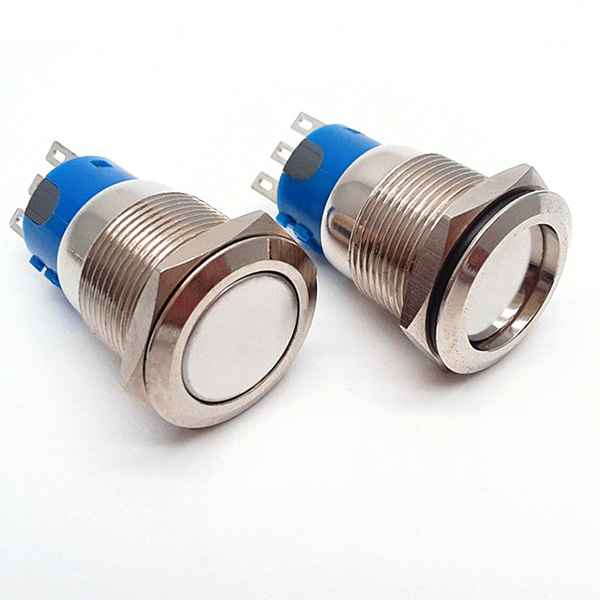

  • Product description: 25mm illuminated momentary/ self-locking led push button switch 5pin 6 pin no nc light metal waterproof
  • INQUIRY

Descriptions:

Model Number:25mm Metal Push Button Switch

LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v

Mounting hole diameter:25mm

Head shape:Flat head/ High head

Crust material:Stainless Steel/Copper plating/Aluminum oxide

Contact configuration:1NO1NC/ 2NO2NC

Operation type:Momentary or Latching

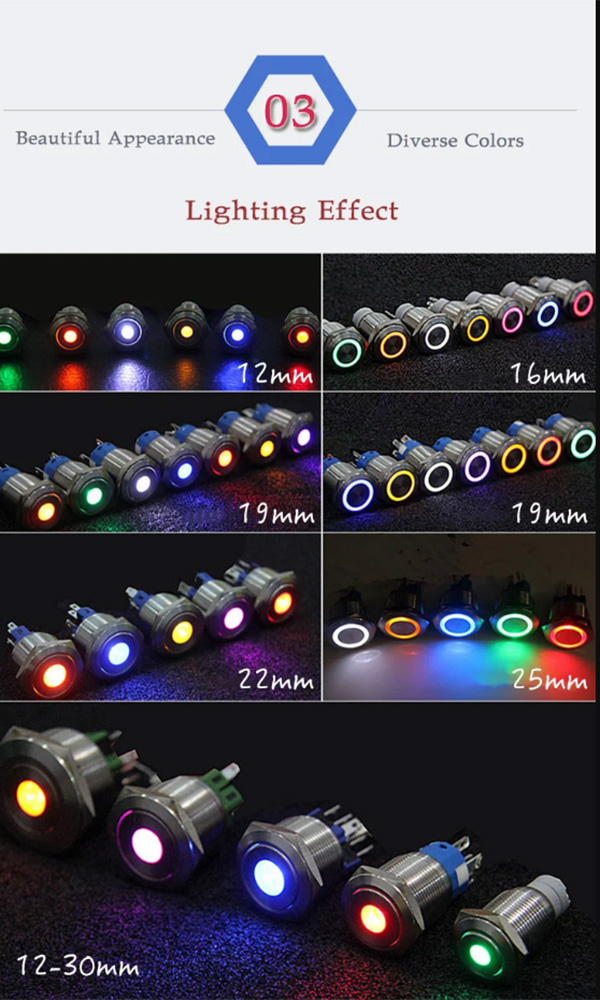

Emitting Type:Ring LED/Symbol LED/Dot LED

Switch Rating:3A / 250VAC

Features:

1.3A metal push button switch

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC/2NO2NC function

8.Customzied: Acceptable

9.22MM SPST ON OFF IP67 IK8 momentary stainless steel push button
